Sheath Monitor

The Sheath Monitor system is a versatile hardware upgrade for non-invasive measurement and analysis of fluid parameters for flow cytometry, pharmaceutical manufacturing, and other applications requiring sterile pressurized vessels. To optimize the Sheath Monitor system’s functionality, bundle with the Site Manager Pro software to receive real-time remote data from multiple sites, instruments and devices.

For more information, please email or call +1.970.295.4570.

• Measured Parameters
• Key Features
• System Block Diagram
• Technical Specs

Measured Parameters

Fluid level, pressure and temperature

Laboratory temperature and humidity

Sort rate

Event rate

Key Features

Textual and graphical data visualization

Visual and audible alerts of warning and critical parameter values

Data logging and transfer to a local or remote data server

Data export to industry standards

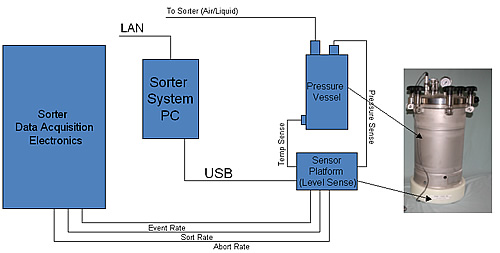

System Block Diagram

Technical Specs

12" W x 12" L x 5" H

Weight: 27lbs (w/o pressure valves)

Computer requirements:

Microsoft Windows XP Pro operating system

512Mb RAM

80Gb HDD (data logging requires additional disk space)

CD ROM drive

USB 2.0 port

Monitor with a minimum resolution of 1024 x 768 pixels

Internet connection (required for remote monitoring & control)
